| General | |
| Frequency Range | UHF1: 400-470MHz; VHF: 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 (each with a maximum of 256 channels) |
| Operating Voltage | 7.4V |

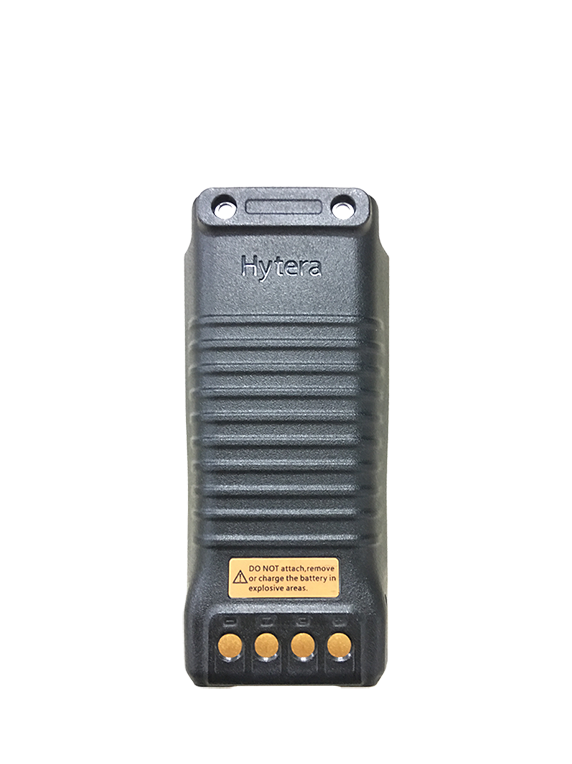

| Battery | 1800mAh (Li-Ion) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog: about 14.5hours/13hours(GPS); Digital: about 17hours/15hours (GPS) |
| Dimensions(H×W×D) mm | 141 × 55 × 39 |
| Weight | 505g |
| Display | LCD display:160 x 128 pixels, 65536 colors, 1.8 inch |
| Anti-explosion levels | ATEX:; II 1G Ex ia IIC T3; II 1D Ex ia IIIC T160°C; I M1 Ex ia I; IECEx:; Ex ia IIC T3Ga; Ex ia IIIC T160°C ; Ex ia I; FM/CSA:; Class I, Division 1, Groups A, B, C, D; T3B Class I, II, III, Division 1, Groups A, B, C, D, E, F, G; T3C |
| Receiver | |
| Sensitivity(Analog) | 0.3μV(12dB SIN AD); 0.22μV(typical)(12dB SIN AD); 0.4μV(20dB SIN AD) |
| Sensitivity(Digital) | 0.3μV/BER 5% |
| Rated Audio Power Output | 0.5W |
| Transmitter | |
| RF Power Output | 1W |
| Digital Vocoder Type | AMBE+2™ or SELP |
| Environmental | |
| Operating Temperature | -20℃～+50℃ (hazardous environment); -30℃～+60℃ (non-hazardous environment) |
| Storage Temperature | -40℃～+85℃ |
| ESD | IEC 61000-4-2（level 4）; ±8kV（Contact）; ±15kV（Air） |
| Dust & Water Protection | IP67 |
| Humidity | Per MIL-STD-810 C/D/E/F/G |
| Vibration,Drop&Shock | Per MIL-STD-810 C/D/E/F/G |
| GPS Specifications | |
| Horizontal Position Accuracy | <5m (50% probable); <10m (95% probable) |
| Cold Start (Time to First Fix) | <1 minute |
| Hot Start (Time to First Fix) | <10 seconds |
| Note | Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength) |
