| General | |
| Frequency Range | UHF3: 350-400MHz VHF1: 136-174MHz UHF1: 400-470MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Operating Voltage | 7.4V |

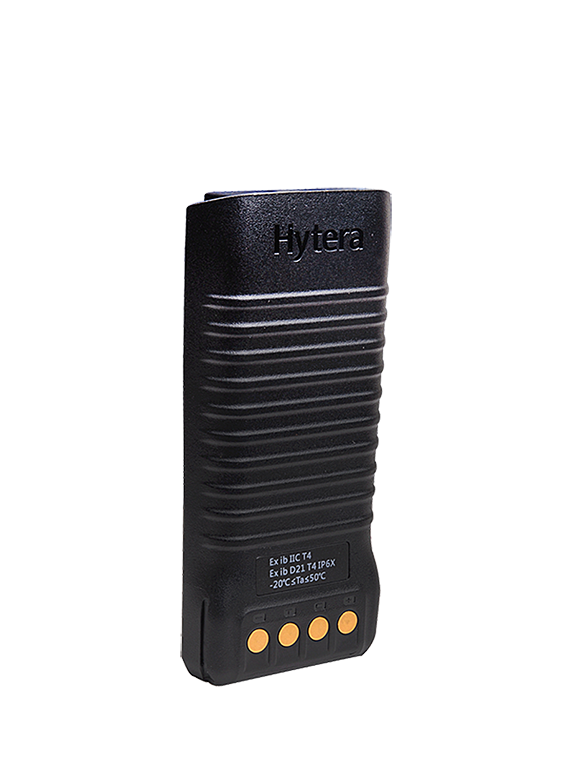

| Battery | 1800mAh (Li-Ion) |
| Battey Life(5/5/90 Duty Cycle,High TX Power) | Analog: about 14.5hours/13hours(GPS) Digital: about 17hours/15hours (GPS) |
| Dimensions(H×W×D) mm | 141 x 55 x 37 |
| Weight | 485g |
| Anti-explosion levels | ATEX: II 2G Ex ib IIC T4 II 2D Ex ib IIIC T120℃ IP5X I M2 Ex ib IECEx: Ex ib IIC T4 Ex ib IIIC T120℃ IP5X Ex ib I FM/CSA: Class I, Zone 1 AEx/Ex ib IIC T4 Gb Class II, III Div 1, Group E, F, G T120℃ -20℃≤Ta≤50℃ |
| Receiver | |
| Sensitivity(Analog) | 0.3μV(12dB SIN AD) 0.22μV(Typical)(12dB SIN AD) 0.4μV(20dB SIN AD) |
| Sensitivity(Digital) | 0.3μV/BER 5% |
| Rated Audio Power Output | 0.5W |
| Transmitter | |
| RF Power Output | 1W |
| Digital Vocoder Type | AMBE+2™ or SELP |
| Environmental | |
| Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -40℃～+85℃ |
| ESD | IEC 61000-4-2（level 4） ±8kV（Contact） ±15kV（Air） |
| Dust & Water Protection | IP67 |
| Humidity | MIL-STD-810 C/D/E/F/G |
| Vibration,Drop&Shock | MIL-STD-810 C/D/E/F/G |
| GPS Specifications | |
| Horizontal Position Accuracy | <5m (50% probable) <10m (95% probable) |
| Cold Start (Time to First Fix) | <1 minute |
| Hot Start (Time to First Fix) | <10 seconds |
| Note | Accuracy Specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal-130dBm signal strength) |
